Converts Microsoft Visio drawings (.vsdx and legacy .vsd) into real, editable AutoCAD DXF geometry, not a flattened picture. Runs on your own computer; your drawings are never uploaded to a conversion website.
Online converters charge per file or per month and give you a picture. Visio2DXF is US$39, paid once, and converts as many drawings as you like.
Schematics and site drawings are often confidential. Nothing is uploaded; the conversion runs offline on your own machine.
Energy Conscious Design built it to move its own Visio schematics into CAD, with a conversion report that says exactly what needs a manual look.

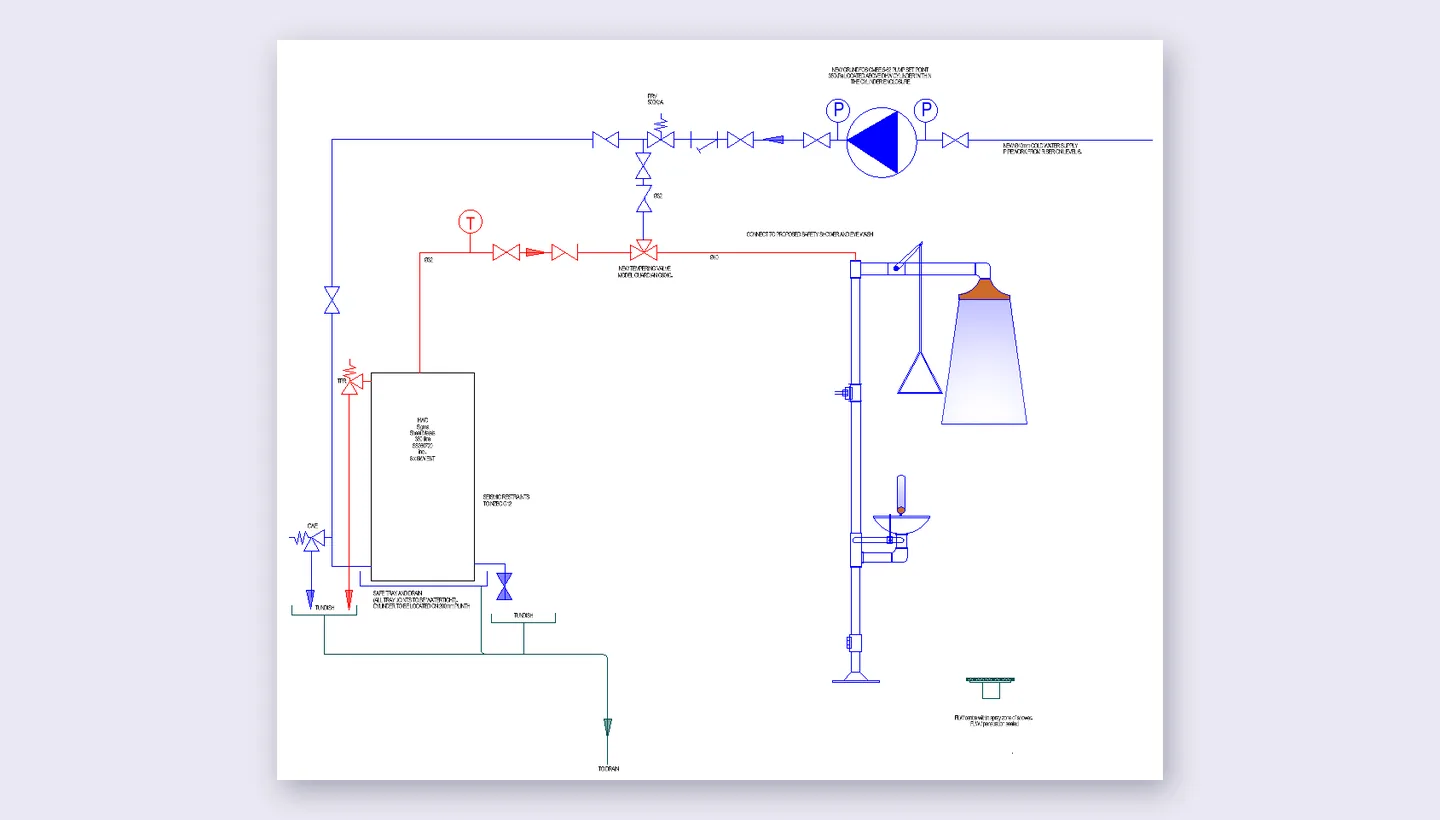

Actual lines, arcs, circles, text and images, not a raster picture pasted into a DXF.
Both modern and old binary Visio formats are supported, out of the box.
Drag a whole folder, or select many files at once, and convert them all in one go.

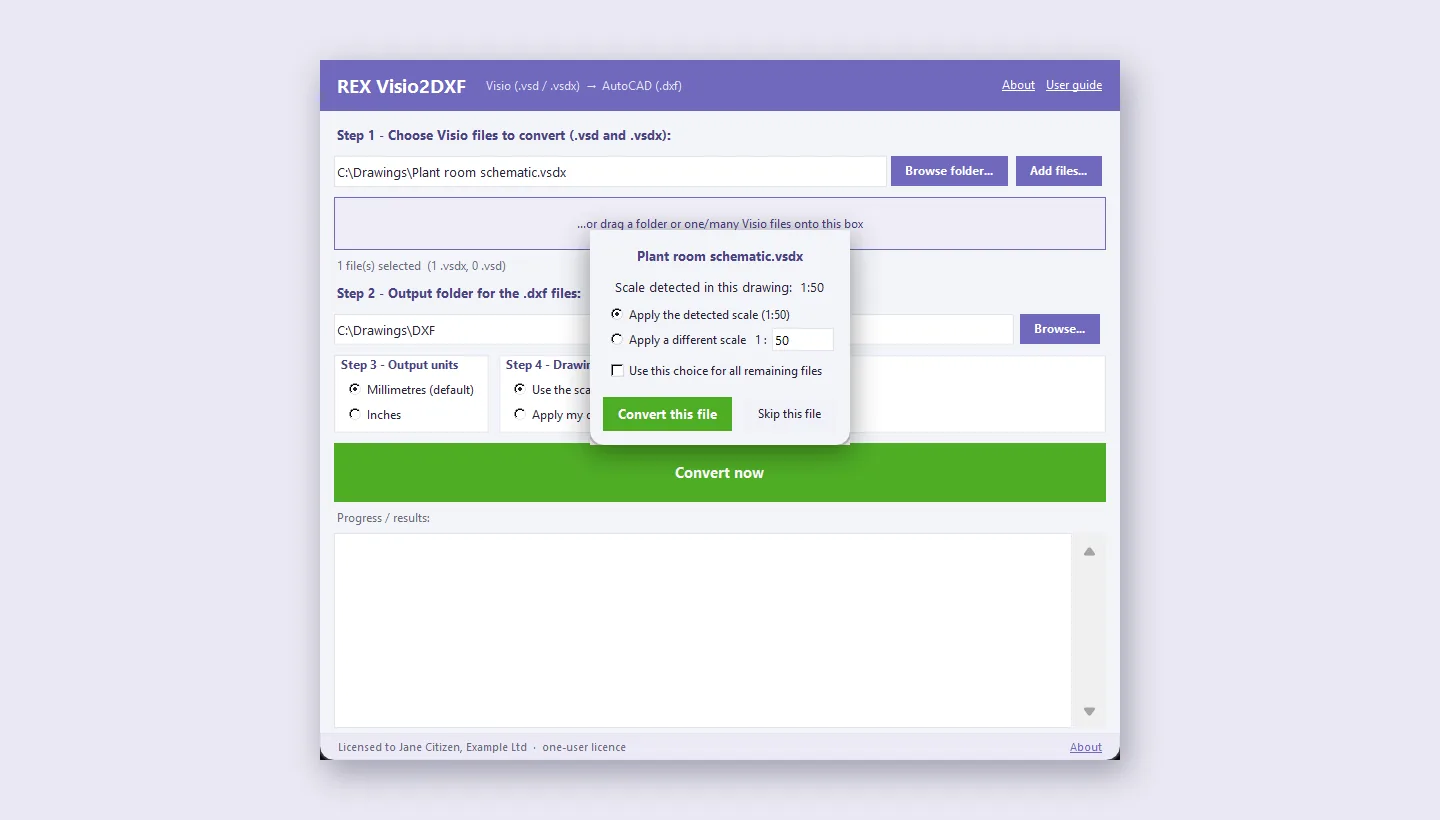

Reads the scale Visio recorded for the page and offers to apply it automatically, in millimetres or inches.
Visio layers carry through as DXF layers, with line colours and weights maintained where possible.
Every DXF gets an embedded report layer, and a text file, showing exactly what converted cleanly and what needs a manual look.
Runs on Windows 10/11 and on Apple-silicon Macs. Modern .vsdx files convert with nothing else installed.
The output is DXF, which AutoCAD LT and other CAD programs open directly; Save As DWG there if you need DWG.
